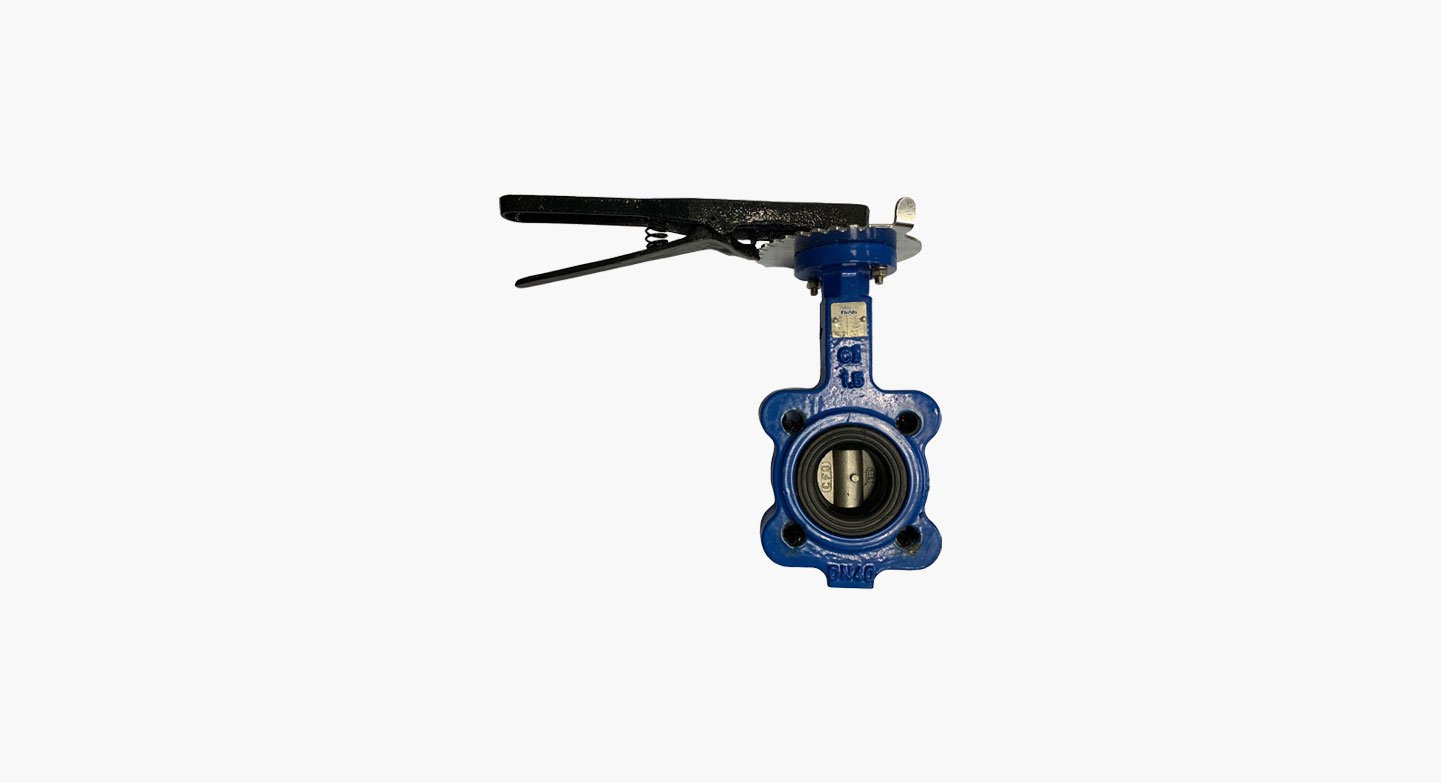

ANSI 150# CAST IRON LUG TYPE BUTTERFLY VALVE
ANSI 150# CAST IRON LUG TYPE BUTTERFLY VALVE

Material List

No Part Name Material
1 Body Cast Iron
2 Seat EPDM
3 Shaft SS410
4 Disc CF8
5 Pin SS304
6 Bushing Polymers
7 Oring NBR
8 Handle Lever Ductile Iron
ANSI 150# CAST IRON LUG TYPE BUTTERFLY VALVE

Flange End Connection Dimension List

Size
 SKU No.
 H
 C
 L
 P
 L0
 Upper Flange ANSI 150
DN Inches K E z-d g h D1 n-M
40 1 1/2" VL-CI-BU-L-150-24 214 33.4 24 9 220 65 50 4-7 35 2.2 99 4-1/2"
50 2" VL-CI-BU-L-150-32 242 35 27 9 220 65 50 4-7 35 2.2 120.5 4-5/8"
65 2 1/2" VL-CI-BU-L-150-40 265 45 24 9 220 65 50 4-7 35 2.2 139.5 4-5/8"
80 3" VL-CI-BU-L-150-48 278 45.5 24 9 220  65 50 4-7 35 2.2  152.5  4-5/8"
100 4" VL-CI-BU-L-150-64 315 51 25 11 255  90  70 4-9 36 2.2 190.5  4-5/8"
125 5" VL-CI-BU-L-150-80 343 54 25 14 260  90  70 4-9 36 2.2 216  8-3/4"
150 6" VL-CI-BU-L-150-96 369 55 27 14 260  90  70 4-9 36 2.2  241.5  8-3/4"
