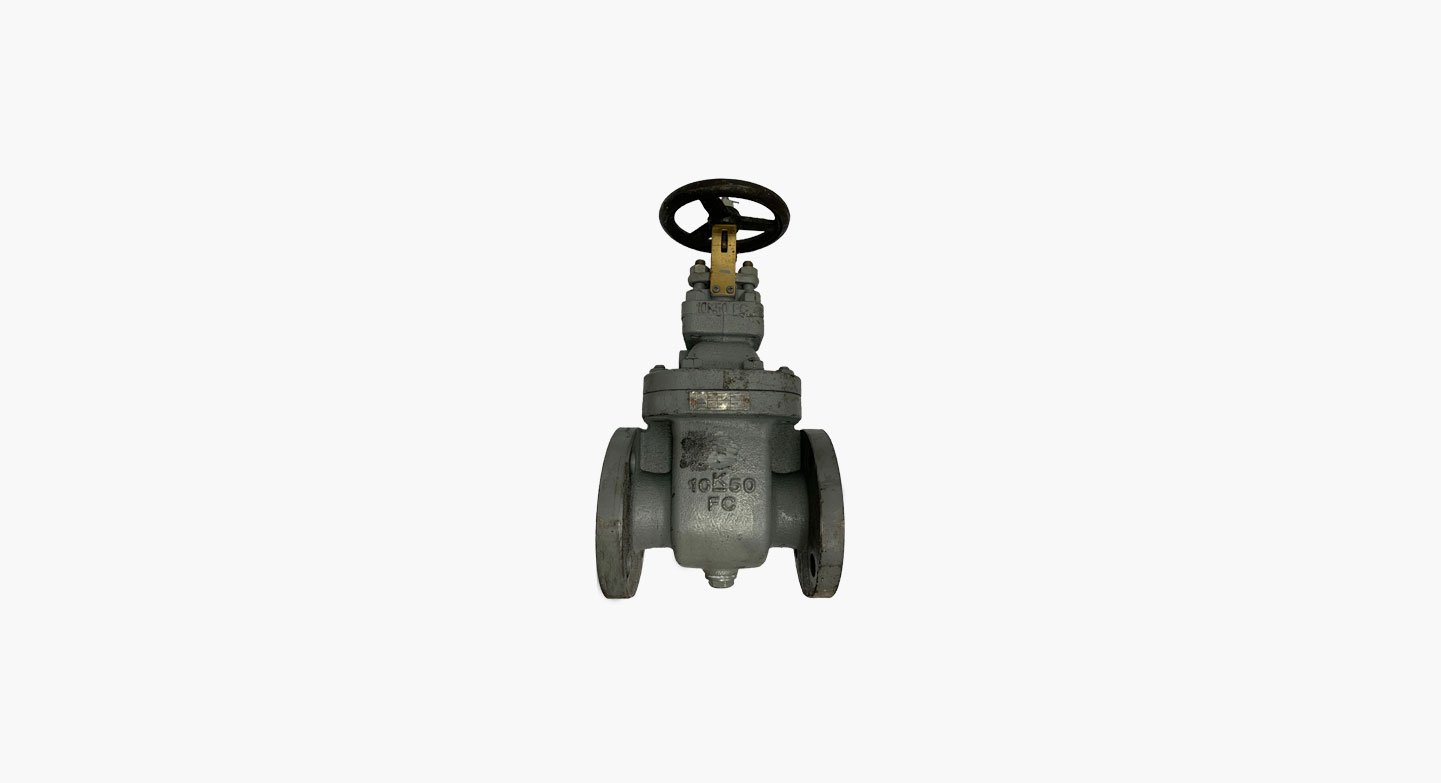

JIS10K CAST IRON FLANGE END GLOBE VALVE (DN50 - DN100)
JIS10K CAST IRON FLANGE END GLOBE VALVE (DN50 - DN100)

Material List

No Part Name Material
1 Body FC
2 Seat FC
3 Disc FC
4 Cover A29 1025
5 Stem A276 410
6 Gasket SS304 + Graphite
7 Bolts A29 1035
8 Nuts A29 1025
9 Bonnet FC
10 Stem Nut A276 410
11 Handwheel A47 32510
12 Nut A29 1025
13 Screw SS304
14 Nuts A29 1025



No Part Name Material
15 Bolt A29 1035
16 Gland Flange FC
17 Packing Gland A276 410
18 Pin Flexible Graphite
19 Packing A276 410
JIS10K CAST IRON FLANGE END GLOBE VALVE

DN50 - DN100 Flange End Connection Dimension List

Size SKU No. d L O W n – Øz t Weight (Kg)
2" VL-CI-GL-F-10K-32 50 222 154 122 4-Ø19 21 18.60
2 1/2" VL-CI-GL-F-10K-40 65 272 175 142 4-Ø19 22 27.80
3" VL-CI-GL-F-10K-48 80 300 185 153 8-Ø19 23 32.00
 4" VL-CI-GL-F-10K-64  100  352  210  177 8-Ø19 25  47.00

JIS10K CAST IRON FLANGE END GLOBE VALVE (DN125 - DN150)
JIS10K CAST IRON FLANGE END GLOBE VALVE (DN125 - DN150)

Material List

No Part Name Material
1 Body ASTM A126 B
2 Seat ASTM A126 B + SS304
3 Disc ASTM A126 B + SS304
4 Cover ASTM A29 1025
5 Stem ASTM A276 410
6 Gasket SS304 + Graphite
7 Bolts ASTM A29 1035
8 Nuts ASTM A29 1025
9 Bonnet ASTM A126 B
10 Stem Nut ASTM A276 410
No Part Name Material
11 Handwheel ASTM A47 32510
12 Nut ASTM A29 1025
13 Screw SS304
14 Nuts ASTM A29 1025
15 Bolts ASTM A29 1035
16 Gland Flange ASTM A126 B
17 Packing Gland ASTM A276 410
18 Pin ASTM A29 1025
19 Packing Flexible Graphite

DN125 - DN150 Flange End Connection Dimension List

Size SKU No. d L O W n – Øz t f Weight (Kg)
5" VL-CI-GL-F-10K-80 125 330 254 213 8-Ø22 23.9 2 47.60
6" VL-CI-GL-F-10K-96 150 355 279 244 8-Ø22 25.4 2 68.00
