###### THREADED END 3 PC BALL VALVE (WELD-IN/BSPP/NPT CONNECTION)

![THREADED END 3 PC BALL VALVE](https://info.chuankok.com/hubfs/AF%20Hydro/Valves%20Dimension/Threaded%20End/3pc-valves.png "THREADED END 3 PC BALL VALVE")

Material List

| No | Part Name | Material |
| --- | --- | --- |
| 1 | Bolt | A193 B8 |
| 2 | Bolt Nut | A194 8 |
| 3 | Bolt Washer | 65Mn |
| 4 | Body | CF8M |
| 5 | Body Connector | CF8M |
| 6 | Seat Ring | PTFE |
| 7 | Ball | CF8M |
| 8 | Stem | AISI 316 |
| 9 | Thrust Washer | PTFE |
| 10 | Stem Packing | PTFE |
| 11 | Gland | AISI 304 |
| 12 | Handle | AISI 201 |
| 13 | Wrench Washer | AISI 304 |
| 14 | Handle Nut | AISI 304 |
| 15 | Locking Device | AISI 304 |

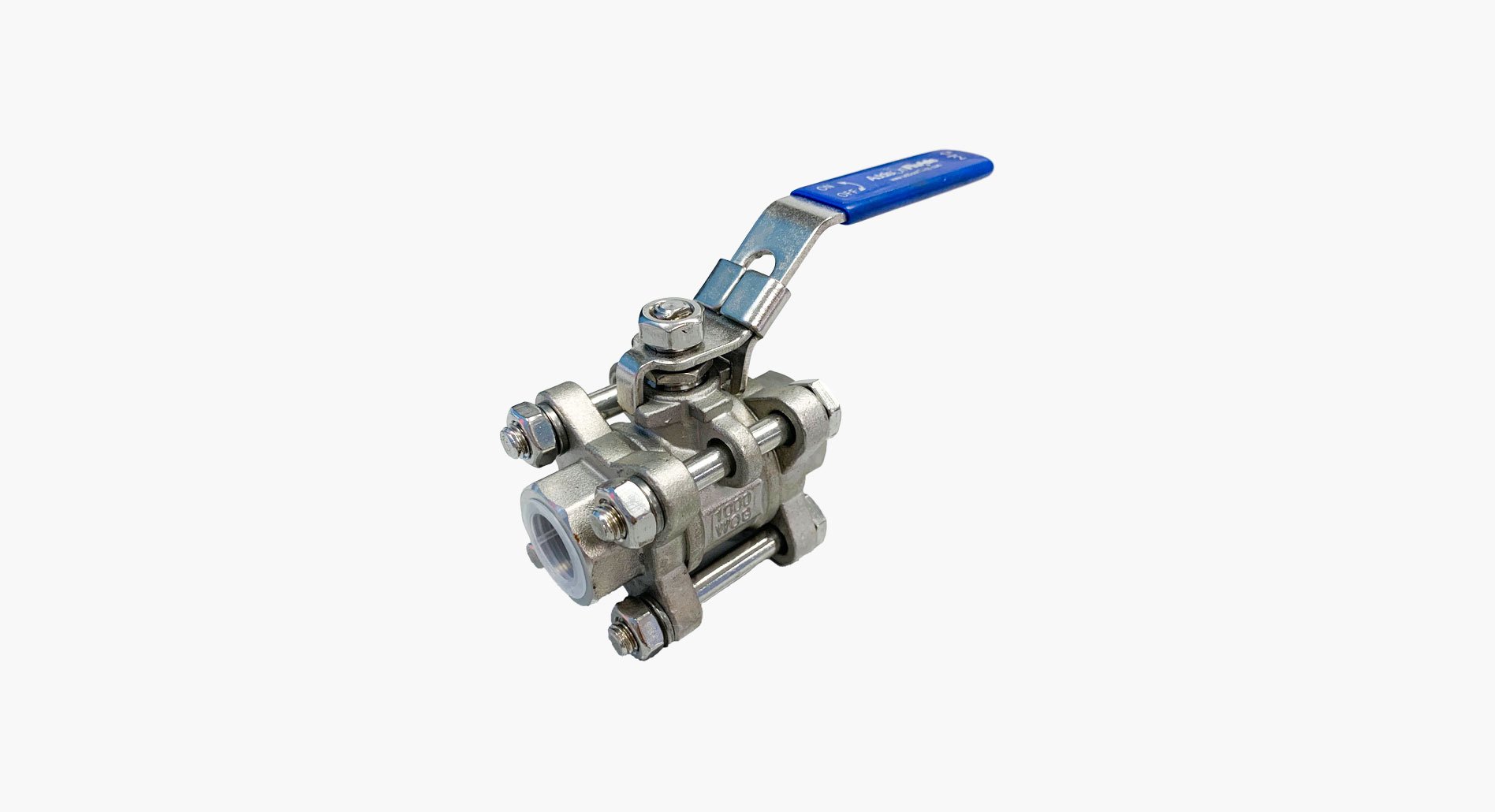

![THREADED END 3 PC BALL VALVE](https://info.chuankok.com/hs-fs/hubfs/AF%20Hydro/Product/Valves/Threaded%20End/3pc_1.jpg?width=1896&height=1030&name=3pc_1.jpg "THREADED END 3 PC BALL VALVE")

Weld-In Connection Dimension List

| Size | SKU No. | d | L | H  | W | Weight (Kg) |
| --- | --- | --- | --- | --- | --- | --- |
| 1/4" | VL-S-B3-SW-1000-04 | 10 | 66 | 45 | 100 | - |
| 3/8" | VL-S-B3-SW-1000-06 | 12 | 66 | 45 | 100 | - |
| 1/2" | VL-S-B3-SW-1000-08 | 15 | 73 | 53 | 104 | 0.51 |
| 3/4" | VL-S-B3-SW-1000-12 | 20 | 79.5 | 58 | 118 | 0.73 |
| 1" | VL-S-B3-SW-1000-16 | 25 | 86.5 | 68 | 145 | 0.91 |
| 1 1/4" | VL-S-B3-SW-1000-20 | 32 | 108 | 81 | 162 | 1.55 |
| 1 1/2" | VL-S-B3-SW-1000-24 | 38 |  118 | 85 | 180 | 1.85 |
| 2" | VL-S-B3-SW-1000-32 | 50 |  144 | 92 | 180 | 3.54 |
| 2 1/2" | VL-S-B3-SW-1000-40 | 65 |  180 | 115  | 224 | 6.38 |
| 3" | VL-S-B3-SW-1000-48 | 80 | 209 | 130 | 242 | 10.07 |
| 4" | VL-S-B3-SW-1000-64 | 100 | 265 | 125 | 300 | - |

BSPP Connection Dimension List

| Size | SKU No. | d | L | H  | W | Weight (Kg) |
| --- | --- | --- | --- | --- | --- | --- |
| 1/4" | VL-S-B3-G-1000-04 | 10 | 66 | 45 | 100 | 0.30 |
| 3/8" | VL-S-B3-G-1000-06 | 12 | 66 | 45 | 100 | 0.30 |
| 1/2" | VL-S-B3-G-1000-08 | 15 | 73 | 53 | 104 | 0.51 |
| 3/4" | VL-S-B3-G-1000-12 | 20 | 79.5 | 58 | 118 | 0.73 |
| 1" | VL-S-B3-G-1000-16 | 25 | 86.5 | 68 | 145 | 0.91 |
| 1 1/4" | VL-S-B3-G-1000-20 | 32 | 108 | 81 | 162 | 1.56 |
| 1 1/2" | VL-S-B3-G-1000-24 | 38 |  118 | 85 | 180 | 1.86 |
| 2" | VL-S-B3-G-1000-32 | 50 |  144 | 92 | 180 | 2.98 |
| 2 1/2" | VL-S-B3-G-1000-40 | 65 |  180 | 115  | 224 | 6.65 |
| 3" | VL-S-B3-G-1000-48 | 80 | 209 | 130 | 242 | 7.70 |
| 4" | VL-S-B3-G-1000-64 | 100 | 265 | 125 | 300 | 17.79 |

NPT Connection Dimension List

| Size | SKU No. | d | L | H  | W | Weight (Kg) |
| --- | --- | --- | --- | --- | --- | --- |
| 1/4" | VL-S-B3-N-1000-04 | 10 | 66 | 45 | 100 | 0.41 |
| 3/8" | VL-S-B3-N-1000-06 | 12 | 66 | 45 | 100 | 0.60 |
| 1/2" | VL-S-B3-N-1000-08 | 15 | 73 | 53 | 104 | 0.51 |
| 3/4" | VL-S-B3-N-1000-12 | 20 | 79.5 | 58 | 118 | 0.73 |
| 1" | VL-S-B3-N-1000-16 | 25 | 86.5 | 68 | 145 | 0.91 |
| 1 1/4" | VL-S-B3-N-1000-20 | 32 | 108 | 81 | 162 | 1.56 |
| 1 1/2" | VL-S-B3-N-1000-24 | 38 |  118 | 85 | 180 | 1.86 |
| 2" | VL-S-B3-N-1000-32 | 50 |  144 | 92 | 180 | 2.98 |
| 2 1/2" | VL-S-B3-N-1000-40 | 65 |  180 | 115  | 224 | 6.65 |
| 3" | VL-S-B3-N-1000-48 | 80 | 209 | 130 | 242 | 7.70 |
| 4" | VL-S-B3-N-1000-64 | 100 | 265 | 125 | 300 | 17.79 |

---

###### THREADED END 3 PC BALL VALVE (WELD-ON SCH80)

![THREADED END 3 PC BALL VALVE (WELD-ON SCH80)](https://info.chuankok.com/hubfs/AF%20Hydro/Valves%20Dimension/Threaded%20End/3pc-valves-bw.png "THREADED END 3 PC BALL VALVE (WELD-ON SCH80)")

Material List

| No | Part Name | Material |
| --- | --- | --- |
| 1 | Nut | 304 |
| 2 | Spring Washer | 304 |
| 3 | Handle | 201 |
| 4 | Gland Nut | 304 |
| 5 | Packing | PTFE |
| 6 | Thrust Washer | PTFE |
| 7 | Stem | 304/316 |
| 8 | Bolt | 304 |
| 9 | Spring Washer | 304 |
| 10 | Nut | 304 |
| 11 | Cap | CF8 / CF8M |
| 12 | Seat | PTRE / RPTFE |
| 13 | Body | CF8 / CF8M |
| 14 | Ball | 304 / 316 |

Weld-On SCH80 Connection Dimension List

| Size | SKU No. | d | L |  L1 | H  | W | Weight (Kg) |
| --- | --- | --- | --- | --- | --- | --- | --- |
| 3/8" | VL-S-B3-BW-1000-06 | 12.5 | 66 |  66 | 45 | 100 | - |
| 1/2" | VL-S-B3-BW-1000-08 | 15 | 74 |  71 | 49 | 104 | 0.57 |
| 3/4" | VL-S-B3-BW-1000-12 | 20 | 79 |  80 | 55  | 118 | 0.80 |
| 1" | VL-S-B3-BW-1000-16 | 25 | 88 |  91 | 67  | 145 | 1.20 |
| 1 1/4" | VL-S-B3-BW-1000-20 | 32 | 108  |  108 | 70 | 145 | 1.81 |
| 1 1/2" | VL-S-B3-BW-1000-24 | 38 | 119 |  119 | 80 | 177 | 2.30 |
| 2" | VL-S-B3-BW-1000-32 | 49 | 143 |  142 | 92 | 177 | 3.54 |
| 2 1/2" | VL-S-B3-BW-1000-40 | 65 | 180 |  182 | 113 | 224 | - |
| 3" | VL-S-B3-BW-1000-48 | 78 | 209 |  209 | 127 | 242 | - |
| 4" | VL-S-B3-BW-1000-64 | 98 | 260 |  260 |  180 | 280 | - |
