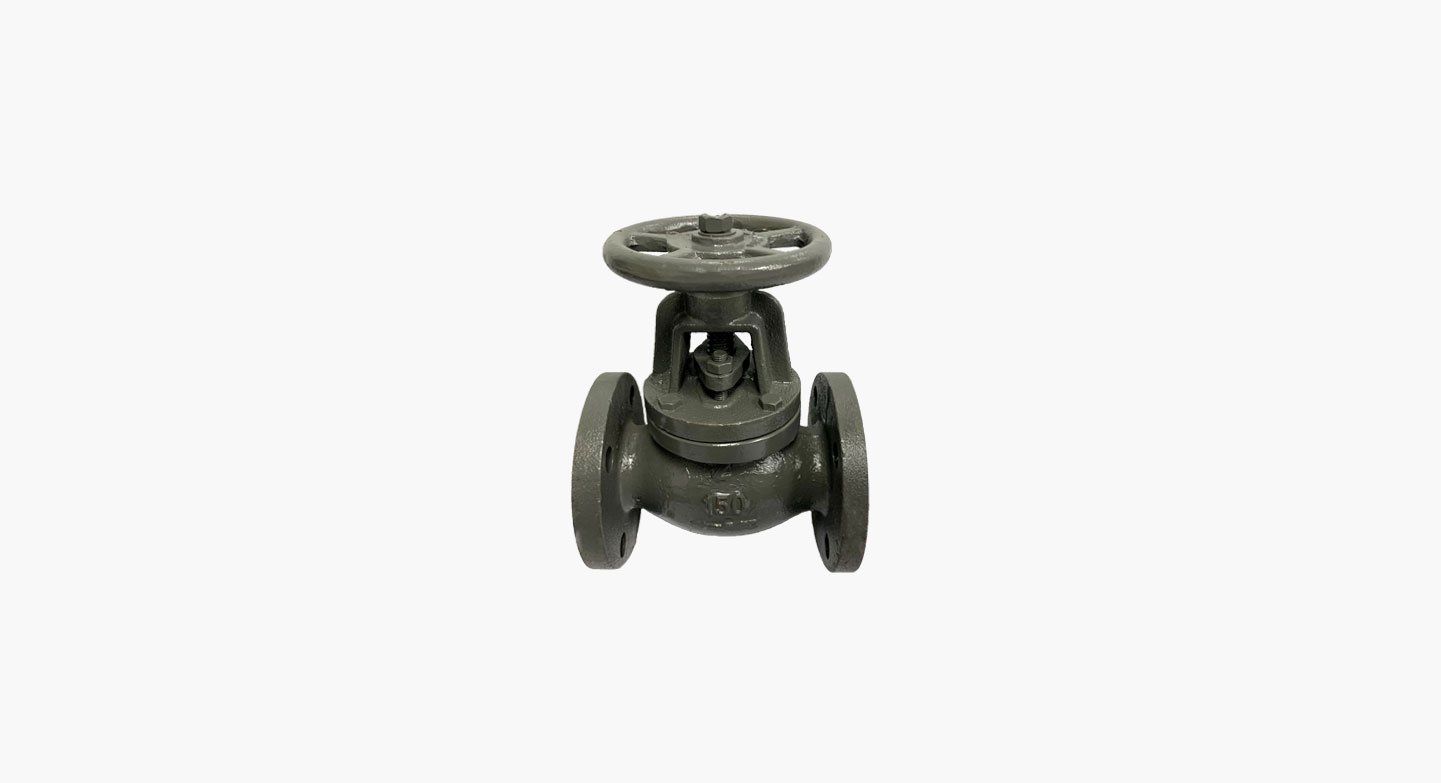

ANSI 150# CAST IRON FLANGE END GLOBE VALVE (DN50 - DN100)
ANSI 150# CAST IRON FLANGE END GLOBE VALVE (DN50 - 100)

Material List

No Part Name Material
1 Body A126 B Cast Iron
2 Seat A126 B Cast Iron
3 Disc A126 B Cast Iron
4 Cover A29 1025
5 Stem A276 SUS410
6 Gasket SS304 + Graphite
7 Bolts A29 1035
8 Nuts A29 1025
9 Bonnet A126 B Cast Iron
10 Stem Nut A276 SUS410
11 Handwheel A47 32510 Malleable Iron
12 Nut A29 1025
13 Screw SS304
14 Nut A29 1025

Material List

No Part Name Material
15 Bolt A29 1035
16 Gland Flange A126 B Cast Iron
17 Packing Gland A276 SUS410
18 Pin A29 1025
19 Packing Flexible Graphite
ANSI 150# CAST IRON FLANGE END GLOBE VALVE

DN50 - DN100 Flange End Connection Dimension List

Size SKU No. d L O W R n – Øz t f Weight (Kg)
2" VL-CI-GL-F-150-32 50 200 152 120.7 92.1 4-Ø19 15.9 2 11.45
2 1/2" VL-CI-GL-F-150-40 65 216 178 139.5 104.8 4-Ø19 17.9 2 18.80
3" VL-CI-GL-F-150-48 80 240 190 152.5 127 4-Ø19 19.1 2 24.70
 4" VL-CI-GL-F-150-64  100  292  229  190.5  157.2 8-Ø19 23.9  2  37.25

ANSI 150# CAST IRON FLANGE END GLOBE VALVE (DN50 - DN100)
ANSI 150# CAST IRON FLANGE END GLOBE VALVE (DN50 - DN100)

Material List

No Part Name Material
1 Body ASTM A126 B
2 Seat ASTM A126 B + SS304
3 Disc ASTM A126 B + SS304
4 Cover ASTM A29 1025
5 Stem ASTM A276 SUS410
6 Gasket SS304 + Graphite
7 Bolts ASTM A29 1035
8 Nuts ASTM A29 1025
9 Bonnet ASTM A126 B
10 Stem Nut ASTM A276 410
No Part Name Material
11 Handwheel ASTM A47 32510
12 Nut ASTM A29 1025
13 Screw SS304
14 Nut ASTM A29 1025
15 Bolt ASTM A29 1035
16 Gland Flange ASTM A126 B
17 Packing Gland ASTM A276 410
18 Pin ASTM A29 1025
19 Packing Flexible Graphite

DN125 - DN150 Flange End Connection Dimension List

Size SKU No. d L O W n – Øz t f Weight (Kg)
5" VL-CI-GL-F-150-80 125 330 254 216 8-Ø22 23.9 2 49.50
6" VL-CI-GL-F-150-96 150 355 279 241.5 8-Ø22 25.4 2 66.75
