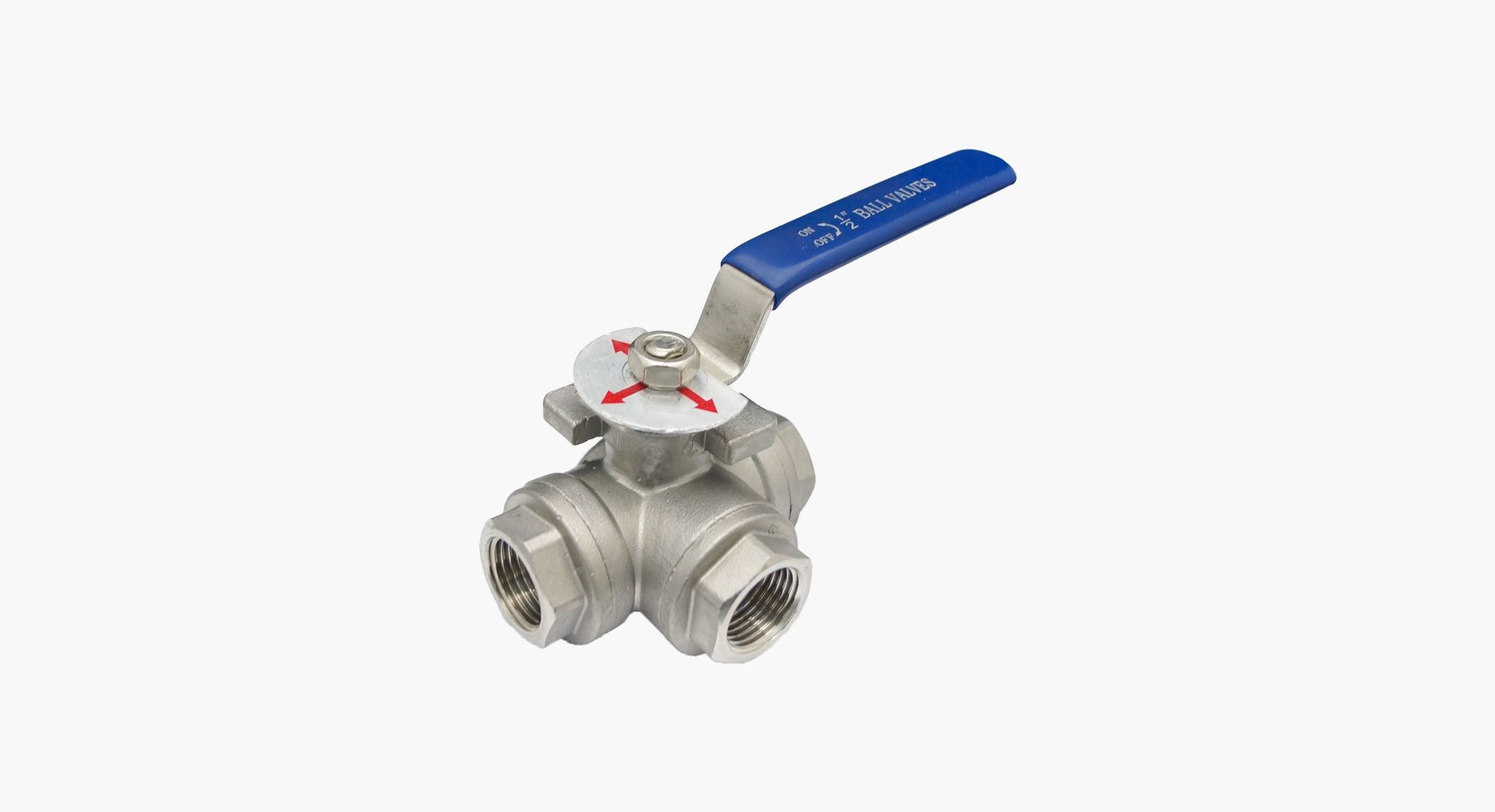

THREADED END T-PORT BALL VALVE
![THREADED END T-PORT BALL VALVE THREADED END T-PORT BALL VALVE](https://info.chuankok.com/hubfs/AF%20Hydro/Valves%20Dimension/Threaded%20End/5-t-port-valves.png)
Material List
No | Part Name | Material |
1 | Bonnet | CF8M |
2 | Seat | PTFE |
3 | Gasket | PTFE |
4 | Body | CF8M |
5 | Ball | 316 |
6 | Thrust Gasket | PTFE |
7 | Stem | 316 |
8 | Gland | 304 |
9 | Lever | SS201 |
10 | Washer | SS304 |
11 | Nut | SS304 |
![THREADED END T-PORT BALL VALVE THREADED END T-PORT BALL VALVE](https://info.chuankok.com/hs-fs/hubfs/AF%20Hydro/Product/Valves/Threaded%20End/4T.jpg?width=1896&height=1030&name=4T.jpg)
BSPP Connection Dimension List
Size | SKU No. | D | L | H | T | Weight (Kg) |
1/4" | VL-S-BT-G-1000-04 | 6 | 65.5 | 100 | 51 | 0.58 |
3/8" | VL-S-BT-G-1000-06 | 6 | 65.5 | 100 | 51 | 0.55 |
1/2" | VL-S-BT-G-1000-08 | 10 | 75.5 | 100 | 57 | 0.52 |
3/4" | VL-S-BT-G-1000-12 | 15 | 82.5 | 108 | 62 | 0.71 |
1" | VL-S-BT-G-1000-16 | 20 | 88 | 140 | 72 | 0.98 |
1 1/4" | VL-S-BT-G-1000-20 | 25 | 105 | 152 | 88 | 2.18 |
1 1/2" | VL-S-BT-G-1000-24 | 32 | 135 | 166 | 100 | 3.17 |
2" | VL-S-BT-G-1000-32 | 39 | 149 | 170 | 102 | 4.38 |
NPT Connection Dimension List
Size | SKU No. | D | L | H | T | Weight (Kg) |
1/4" | VL-S-BT-N-1000-04 | 6 | 65.5 | 100 | 51 | 0.58 |
3/8" | VL-S-BT-N-1000-06 | 6 | 65.5 | 100 | 51 | 0.55 |
1/2" | VL-S-BT-N-1000-08 | 10 | 75.5 | 100 | 57 | 0.52 |
3/4" | VL-S-BT-N-1000-12 | 15 | 82.5 | 108 | 62 | 0.71 |
1" | VL-S-BT-N-1000-16 | 20 | 88 | 140 | 72 | 0.98 |
1 1/4" | VL-S-BT-N-1000-20 | 25 | 105 | 152 | 88 | 2.18 |
1 1/2" | VL-S-BT-N-1000-24 | 32 | 135 | 166 | 100 | 3.17 |
2" | VL-S-BT-N-1000-32 | 39 | 149 | 170 | 102 | 4.38 |
